Quartz brackets and supports are customized quartz glass structural components used to hold, position, and fix quartz tubes, wafer carriers, heating elements, and other process parts inside high temperature equipment.

Unlike standard mechanical supports, quartz brackets are designed for thermal processing environments where metal materials may cause contamination, oxidation, or dimensional instability.

These components are commonly manufactured for semiconductor furnaces, photovoltaic processing equipment, laboratory heating systems, and customized industrial machines. Depending on the equipment design, quartz brackets can be produced as holders, support arms, mounting brackets, frames, or complex quartz assemblies.

GKLQuartz manufactures quartz brackets and supports according to customer drawings, providing precision machining, quartz welding, polishing, and customized fabrication services.

Product Overview

Quartz brackets and supports are not simply supporting parts. They are functional quartz components designed to maintain accurate positioning and stable operation of other components inside high temperature equipment.

In semiconductor and photovoltaic systems, quartz brackets are often used to support:

• Quartz boats

• Wafer carriers

• Quartz tubes

• Heating elements

• Process fixtures

• Sensor components

During thermal processes, these supports must maintain their shape and position while exposed to temperatures that exceed the working limits of many conventional materials.

Fused quartz is selected because it provides:

• Very low thermal expansion

• Excellent thermal shock resistance

• High temperature stability

• Chemical resistance

• Low metal contamination

Types of Quartz Brackets & Supports

GKLQuartz manufactures different types of quartz support components according to equipment requirements.

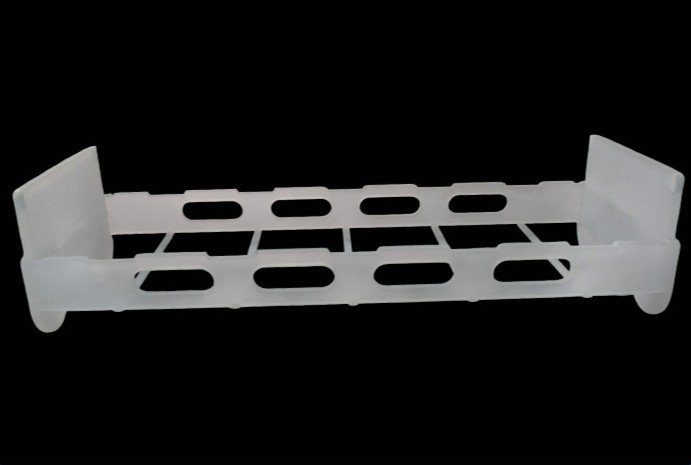

Quartz Support Brackets

Quartz support brackets are used as fixing or positioning parts inside furnace systems.

Typical structures include:

• L-shaped brackets

• Flat support plates

• Side supports

• Mounting brackets

• Custom connection parts

They are commonly installed to secure quartz components while allowing stable operation during heating cycles.

Quartz Wafer Supports

Quartz wafer supports are designed to hold wafers or wafer carriers in processing equipment.

Applications include:

• Diffusion furnaces

• Oxidation systems

• Thermal processing equipment

The support structure can be customized according to:

• Wafer diameter

• Carrier design

• Furnace size

• Installation method

Quartz Tube Supports

Quartz tubes require stable positioning during operation.

Quartz tube supports help maintain:

• Tube alignment

• Mechanical stability

• Proper installation position

They are commonly used in:

• Semiconductor furnace systems

• Laboratory tube furnaces

• Chemical processing equipment

Custom Quartz Frames and Fixtures

For special equipment designs, GKLQuartz manufactures customized quartz frames and fixtures.

These components may include:

• Multiple connection points

• Complex geometries

• Precision openings

• Integrated quartz structures

They are usually produced according to customer drawings or existing samples.

Why Use Quartz Instead of Metal Supports?

In high temperature processing equipment, traditional metal supports may create problems such as:

• Thermal expansion mismatch

• Metal contamination

• Oxidation

• Chemical reaction

Quartz supports provide better compatibility with high temperature and clean processing environments.

The main advantages include:

Applications

Semiconductor Equipment

Quartz brackets and supports are used in:

• Diffusion furnaces

• Oxidation furnaces

• Wafer processing systems

• Semiconductor thermal equipment

They help support wafer carriers and quartz assemblies during high temperature processes.

Photovoltaic Equipment

In solar wafer manufacturing, quartz supports are used in:

• Diffusion systems

• Annealing equipment

• Thermal processing furnaces

They provide stable support during repeated heating cycles.

Laboratory Equipment

Used in:

• Tube furnaces

• Experimental heating systems

• Chemical reactors

Quartz supports provide reliable performance where temperature resistance and chemical stability are required.

Technical Specifications

Manufacturing Capability

Manufacturing quartz brackets requires experience because quartz glass is hard but brittle.

GKLQuartz provides:

Precision Cutting

Used to create the basic shape and dimensions of quartz components.

CNC Machining

Used for:

• Holes

• Slots

• Complex structures

• Precision mounting features

Grinding and Polishing

Used to achieve required:

• Surface smoothness

• Dimensional accuracy

• Edge quality

Quartz Welding

Used to join quartz parts and create complex assemblies.

Cleaning and Inspection

Each component is inspected according to customer requirements before shipment.

Custom Quartz Manufacturing

Many quartz brackets and supports are application-specific components.

GKLQuartz accepts:

• Engineering drawings

• CAD files

• Samples

• Equipment specifications

Manufacturing support includes:

• Prototype development

• Small batch production

• Repeat production

• OEM supply

From simple quartz holders to complex quartz support assemblies, components can be manufactured according to customer requirements.

Request a Quote

If you need customized quartz brackets, quartz supports, or other quartz structural components, please send your drawings, dimensions, material requirements, and application details.

GKLQuartz provides engineering support and customized quartz fabrication solutions for semiconductor, photovoltaic, laboratory, and industrial applications.
