Introduction

Quartz plates and discs are precision-engineered components manufactured from high purity fused quartz materials for applications requiring excellent thermal stability, chemical resistance, and optical performance.

GKLQuartz provides customized quartz plates and discs for semiconductor equipment, photovoltaic manufacturing systems, scientific instruments, optical devices, and industrial processing equipment. With advanced machining capabilities and flexible manufacturing processes, quartz components can be produced according to customer drawings, dimensions, and technical requirements.

From prototype development to volume production, quartz plates and discs are manufactured to meet demanding industrial conditions, including high temperature environments, vacuum systems, and processes requiring stable material performance.

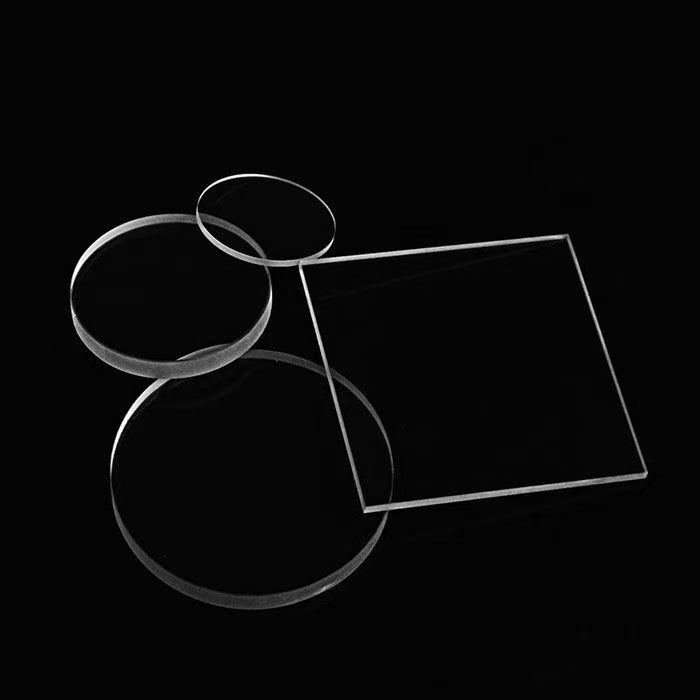

What Are Quartz Plates & Discs?

Quartz plates and discs are flat quartz glass components manufactured from fused quartz or synthetic quartz materials. They are commonly used as protective windows, covers, substrates, insulation components, and structural parts in equipment where conventional glass cannot withstand operating conditions.

Compared with standard glass materials, fused quartz provides significantly better thermal performance, lower thermal expansion, and superior chemical resistance. These characteristics allow quartz plates and discs to maintain dimensional stability during rapid temperature changes and continuous high-temperature operation.

Quartz plates are typically used when a flat surface area or transparent barrier is required, while quartz discs are often selected for circular applications such as optical systems, semiconductor equipment, and laboratory instruments.

Depending on the application requirements, quartz plates and discs can be manufactured with different:

• Thicknesses

• Diameters

• Surface finishes

• Edge configurations

• Hole patterns

• Dimensional tolerances

For semiconductor and industrial customers, quartz components are often not standard catalog products. They are precision parts designed according to equipment structure, process conditions, and performance requirements.

Material Characteristics of Quartz Plates and Discs

The performance of quartz plates and discs mainly comes from the properties of fused quartz material.

Excellent Thermal Stability

Quartz glass has an extremely low coefficient of thermal expansion compared with ordinary glass. This allows quartz plates and discs to withstand rapid heating and cooling cycles with reduced risk of cracking or deformation.

This makes them suitable for:

• Semiconductor thermal processing equipment

• High temperature furnaces

• Photovoltaic manufacturing systems

• Laboratory heating devices

High Chemical Resistance

Quartz material provides excellent resistance against many acids, solvents, and chemical environments.

This property is important in applications involving:

• Semiconductor wet processing

• Chemical reaction systems

• Laboratory equipment

• Surface treatment processes

Optical Performance

High purity quartz offers excellent light transmission from ultraviolet to infrared wavelengths.

Quartz plates and discs are widely selected for:

• UV optical windows

• Laser systems

• Analytical instruments

• Optical inspection equipment

Low Contamination Characteristics

In semiconductor and photovoltaic manufacturing, material purity is critical.

High purity quartz components help reduce contamination risks during sensitive processes where particle generation and chemical stability are important factors.

Applications and Industries

Quartz plates and discs are used across multiple advanced industries where precision, purity, and temperature resistance are required.

Semiconductor Manufacturing

The semiconductor industry is one of the major application areas for quartz plates and discs.

During wafer processing, equipment components are exposed to:

• High temperatures

• Reactive gases

• Vacuum environments

• Chemical processes

Quartz components are widely used because they maintain stable performance under these demanding conditions.

Typical applications include:

• Semiconductor equipment windows

• Furnace components

• Protective covers

• Chamber components

• Wafer processing equipment parts

For semiconductor equipment manufacturers, customized quartz plates and discs can be manufactured according to mechanical drawings and installation requirements.

Photovoltaic Manufacturing

Solar cell production requires quartz components capable of operating continuously at elevated temperatures.

Quartz plates and discs are commonly used in:

• Diffusion furnace systems

• Thermal processing equipment

• Solar wafer handling systems

• High temperature insulation applications

The stability of fused quartz helps maintain consistent production performance during repeated heating cycles.

Scientific and Laboratory Equipment

Research institutions and laboratory equipment manufacturers use quartz plates and discs because of their:

• Chemical resistance

• Optical transparency

• Temperature capability

Common applications include:

• Spectroscopy equipment

• Optical instruments

• Laboratory reactors

• Experimental heating systems

• Analytical devices

Customized dimensions allow quartz components to integrate into different research equipment designs.

Optical and UV Applications

Quartz is widely used in optical systems because it provides excellent transmission characteristics, especially in ultraviolet applications.

Typical uses include:

• UV windows

• Optical covers

• Laser equipment components

• Sensor protection windows

For optical applications, surface quality and flatness are important factors. Quartz plates and discs can be processed with polishing and finishing methods according to optical requirements.

Industrial Equipment

Beyond semiconductor and scientific applications, quartz plates and discs are also used in industrial equipment requiring reliable performance under harsh conditions.

Examples include:

• Vacuum equipment

• Heating systems

• Chemical processing equipment

• Inspection systems

• Customized machinery

Technical Specifications of Quartz Plates & Discs

GKLQuartz manufactures quartz plates and discs according to application requirements, engineering drawings, and equipment specifications.

Because quartz components are often integrated into precision industrial equipment, dimensions, surface quality, and material characteristics must be controlled according to the final application.

The following specifications represent common manufacturing capabilities. Customized requirements can be discussed based on customer drawings and technical standards.

Material Options

Fused Quartz

Fused quartz is the most commonly selected material for industrial quartz plates and discs.

It provides:

• Low thermal expansion

• Excellent thermal shock resistance

• High chemical stability

• Good optical transmission

• Reliable performance in high temperature environments

This material is widely used in semiconductor equipment, photovoltaic systems, laboratory devices, and industrial processing equipment.

Synthetic Quartz

For applications requiring higher optical performance or specific purity requirements, synthetic quartz materials can be considered.

Typical applications include:

• UV optical components

• Precision optical windows

• Advanced inspection systems

Material selection depends on factors such as wavelength range, temperature conditions, and process environment.

Manufacturing Capability

Quartz plates and discs require specialized processing techniques because quartz glass has unique physical properties compared with ordinary glass.

GKLQuartz provides complete quartz fabrication services, including cutting, grinding, polishing, CNC machining, welding, cleaning, and inspection.

Quartz Cutting

Precision cutting is the first step in manufacturing quartz plates and discs.

Professional cutting methods are used to achieve:

• Accurate dimensions

• Clean edges

• Reduced material stress

• Stable processing quality

Cutting parameters are adjusted according to quartz thickness, shape, and final application requirements.

For semiconductor and optical applications, controlling edge quality is important because surface defects can affect component performance.

Grinding and Surface Processing

After cutting, quartz components undergo grinding processes to achieve required dimensions and surface conditions.

Grinding is used for:

• Thickness adjustment

• Flatness improvement

• Edge refinement

• Surface preparation before polishing

The grinding process helps ensure that quartz plates and discs meet mechanical requirements before final finishing.

Quartz Polishing

Surface quality is a critical factor for many quartz plate and disc applications.

GKLQuartz provides different polishing options depending on customer requirements.

Available processes include:

• Standard surface polishing

• Fine polishing

• Optical surface polishing

Polished quartz surfaces are commonly required for:

• Optical windows

• UV applications

• Semiconductor equipment covers

• Precision instruments

The polishing process improves transparency, surface smoothness, and component performance.

CNC Machining

For complex quartz components, precision machining is required.

CNC machining capabilities allow quartz plates and discs to include:

• Precision holes

• Slots

• Grooves

• Special shapes

• Mounting structures

This is especially important for OEM customers who need quartz parts integrated directly into equipment assemblies.

Machining parameters are carefully controlled because quartz is a hard and brittle material that requires specialized processing experience.

Quartz Welding and Fabrication

For applications requiring larger or more complex quartz structures, quartz welding and hot processing techniques can be used.

These processes allow manufacturers to produce:

• Quartz assemblies

• Connected quartz structures

• Customized quartz components

Quartz welding is commonly applied in:

• Semiconductor equipment

• Laboratory systems

• Chemical processing equipment

The ability to combine machining and hot fabrication provides greater flexibility for custom quartz solutions.

Cleaning and Contamination Control

For semiconductor, photovoltaic, and laboratory applications, cleanliness is an important requirement.

Quartz components require proper cleaning procedures before shipment to reduce surface contamination.

Typical processes include:

• Surface cleaning

• Particle removal

• Inspection before packaging

Clean handling helps ensure quartz plates and discs are suitable for sensitive industrial environments.

Quality Inspection

Before delivery, quartz plates and discs are inspected according to customer requirements.

Inspection items may include:

• Dimensional accuracy

• Thickness measurement

• Surface condition

• Edge quality

• Appearance inspection

For customized components, inspection can be performed based on customer drawings and technical specifications.

This quality control approach helps ensure consistent performance when quartz parts are installed in production equipment.

Why Choose Our Quartz Product?

Selecting the right quartz component supplier is important for industries where material performance, dimensional accuracy, and manufacturing reliability directly affect equipment operation.

GKLQuartz focuses on customized quartz glass fabrication for semiconductor, photovoltaic, scientific, optical, and industrial customers. Our manufacturing approach combines material knowledge, machining experience, and process control to produce quartz plates and discs that meet specific application requirements.

Engineering-Based Quartz Manufacturing

Quartz components are not simply cut glass products. Their performance depends on correct material selection, processing methods, and manufacturing experience.

Different applications require different considerations, including:

• Operating temperature

• Chemical exposure

• Optical requirements

• Mechanical structure

• Dimensional tolerance

• Surface quality

GKLQuartz works with customer drawings and technical requirements to determine suitable manufacturing processes and provide practical quartz solutions.

Customized Dimensions and Shapes

Many industrial applications require quartz plates and discs that cannot be purchased as standard sizes.

GKLQuartz supports customized manufacturing including:

• Rectangular quartz plates

• Circular quartz discs

• Irregular shaped quartz components

• Precision machined quartz parts

• Quartz components with holes and openings

Customers can provide:

• CAD drawings

• Technical drawings

• Existing samples

• Equipment specifications

Our production team can manufacture quartz components according to the required design.

Experience with Industrial Applications

Quartz components are widely used in industries with strict requirements for reliability and cleanliness.

GKLQuartz provides quartz solutions for:

Semiconductor Equipment Manufacturers

Supporting applications such as:

• Wafer processing equipment

• Furnace systems

• Process chambers

• Equipment windows

Photovoltaic Equipment Companies

Providing quartz parts for:

• Solar wafer processing

• Thermal processing systems

• High temperature production equipment

Research and Laboratory Equipment Manufacturers

Supporting:

• Scientific instruments

• Experimental systems

• Analytical equipment

Optical Equipment Manufacturers

Providing:

• Quartz windows

• UV transmission components

• Optical protection parts

Understanding different industries helps ensure quartz components are designed for their actual working environment.

Flexible Production Capability

Different customers have different production requirements.

Some projects require only a few prototype parts for equipment development, while others require stable long-term production quantities.

GKLQuartz supports:

• Prototype manufacturing

• Small batch production

• Repeat orders

• OEM manufacturing

This flexibility allows equipment manufacturers and engineering companies to develop and scale their products efficiently.

Custom Quartz Solutions

Many quartz glass applications require customized solutions rather than standard products.

GKLQuartz provides OEM quartz manufacturing services based on customer drawings, samples, and engineering requirements.

Accept Customer Drawings

Customers can provide:

• 2D drawings

• 3D models

• Product samples

• Technical specifications

Our engineers review the requirements and recommend suitable manufacturing processes based on:

• Quartz material selection

• Component structure

• Processing difficulty

• Application conditions

This helps customers receive a quartz component that fits their equipment design.

OEM Quartz Plate and Disc Manufacturing

GKLQuartz supports OEM production for companies that need customized quartz components integrated into their own equipment.

OEM services include:

• Material preparation

• Precision machining

• Surface finishing

• Cleaning

• Quality inspection

• Export packaging

This service is suitable for:

• Semiconductor equipment manufacturers

• Laboratory equipment companies

• Industrial machinery suppliers

• Research organizations

Prototype Production

Before mass production, many customers require prototype components for testing and equipment validation.

Prototype production helps customers:

• Verify equipment compatibility

• Test material performance

• Optimize product design

• Reduce development risks

GKLQuartz can manufacture prototype quartz plates and discs according to initial engineering requirements.

Mass Production Capability

For customers requiring regular supply, production processes can be standardized according to approved specifications.

Mass production support includes:

• Consistent material selection

• Stable processing methods

• Repeatable quality control

• Production scheduling support

This allows customers to maintain reliable quartz component supply for ongoing manufacturing operations.

Request a Quote for Custom Quartz Plates & Discs

If you need quartz plates, quartz discs, or customized fused quartz components for semiconductor equipment, photovoltaic systems, optical devices, or industrial applications, GKLQuartz can provide manufacturing solutions based on your technical requirements.

Please send us:

• Product drawings

• Dimensions

• Material requirements

• Application details

• Required quantity

Our engineering team will review your requirements and provide a suitable quartz manufacturing solution.

Contact GKLQuartz today for a customized quotation for quartz plates and discs.
